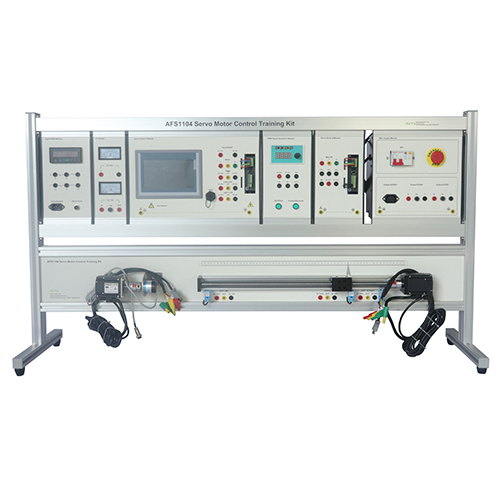

AFS1104 Servo Motor Control Training Kit Didactic Equipment Technical Skills Equipment Electrical Training Equipment
1. Equipment introduction
1.1 Overview
Training devices include position, speed, forward and reverse drive, etc. Through experiments, students can become familiar with the characteristics of the servo motor control training kit and master the control principles and methods.
1.2 Features
(1) The training platform adopts an aluminum profile column frame structure, and each unit module is installed on a guide rail. The modules are clear, easy to use, and not easily damaged.
(2) It is fully equipped with various modules and can be used in combination to complete the training content of various courses.
(3) The training platform has a good safety protection system.
2. Technical parameters
Input power: AC 230 V/50 Hz
Size: 1430mmX470mmX940mm
Weight:<61kg


3. Components list and detailed introduction
3.1 Main part
No    Name
1    DC servo motor power supply hanging box
2    Servo drive-1 hanging box
3    Servo drive-2 hanging box
4    Digital RPM hanging box
5    Voltage/ammeter hanging box
6    PWM signal generator hanging box
7    Servo motor module
3.2 Accessories
No    Name    Qty
1    USB cable USB at both ends blue 1.5 meters    1
2    Fuse 10A 5*20    10
3    4mm safety connection cable 1 meter double-ended yellow    3
4    4mm safety connection cable 1 meter double-ended red    15
5    4mm safety connection cable 1 meter double-ended black    15
6    4mm safety connection cable 1 meter double-ended double-color    5
7    Digital multimeter UA9205    1
8    CD 4.7G    1
9    Zigzag plug extension cord, male and female, 1.5 meters    1
4. Experiment list
Experiment 1 Software Testing Experiment
Experiment 2 Motor forward and reverse rotation experiment
Experiment 3 Speed Mode Test
Experiment 4 position mode test
Experiment 5 Torque Mode Test
